IMU06MK1 / Specification

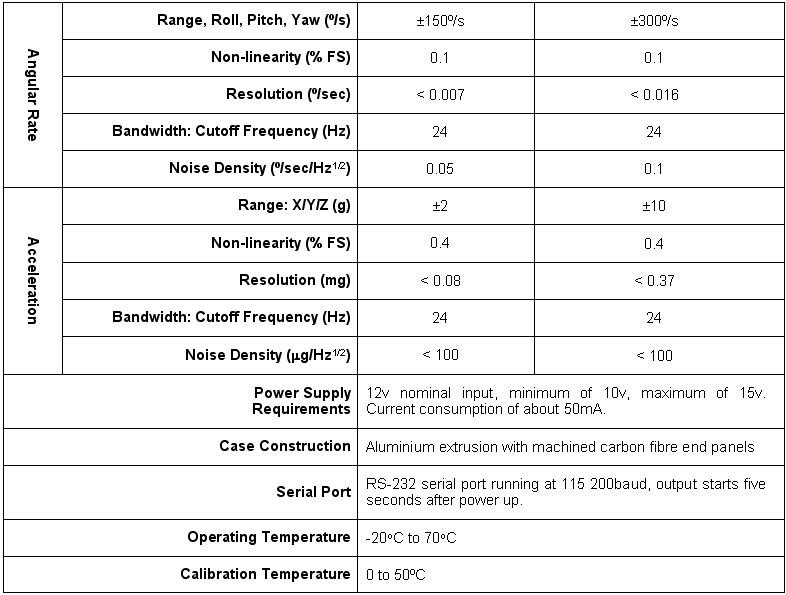

Specification

Pin out

Power in, pin 7

Data in, pin 1

Data out, pin 2

Ground, pin 5

NOTE: If connecting the IMU06 to an existing DL1 or DL2 data logger please ensure that the data logger is running the most up to date firmware version available. This can be obtained by contacting Race Technology directly or from your local agent. This will ensure that the additional data channels from the IMU06 are correctly logged and decoded in the analysis software. If the IMU06 and data logger are purchased at the same time the data logger will be supplied with the correct firmware pre-installed.
