ECUType / Maserati

Maserati ECU

Support vehicles

Maserati Quattroporte
Maserati GranTurismo
Alfa Romeo 8C
Competizione

Connections

Race Technology coneections

CAN interface connections
DASH2 PRO connections
DL1 mk3/club connections
DL1 PRO/WP connections

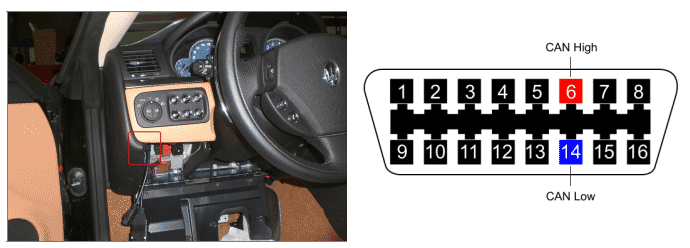

- Connect Race Technology CAN High to pin 6 of OBD connector
- Connect Race Technology CAN Low to pin 14 of OBD connector

Channel listing

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
QP_RPM	RPM	RPM	VAR_0010	1
QP_PPS	Aux 1	Throttle position	VAR_2000	0.40%
QP_TPS	Aux 2	Lambda 1 short trim	VAR_2001	0.40%
QP_ECT	temperature 8	coolant temp	VAR_1007	1C
QP_CAT_T_LAMP	Aux 4	Lambda 1 long trim	VAR_2003	-
QP_BRAKE_SW	Aux 5	Lambda 2 long trim	VAR_2004	on/off
QP_STEER_ANGLE	angle 3	Steering angle	VAR_3002	0.1 deg
QP_BRAKE_PRESS	Aux 30	Fuel aux temp comp	VAR_2029	0.3 bar
QP_GEAR	Aux 13	Fuel inj 8 PW	VAR_2012	-
QP_WH_SPD_RR	Aux 14	Fuel inj 1 cut	VAR_2013	0.1 km/h
QP_WH_SPD_RL	Aux 15	Fuel inj 2 cut	VAR_2014	0.1 km/h
QP_WH_SPD_FR	Aux 16	Fuel inj 3 cut	VAR_2015	0.1 km/h
QP_WH_SPD_FL	Aux 17	Fuel inj 4 cut	VAR_2016	0.1 km/h
