ECUType / Maf-Map-EngineeringECU481

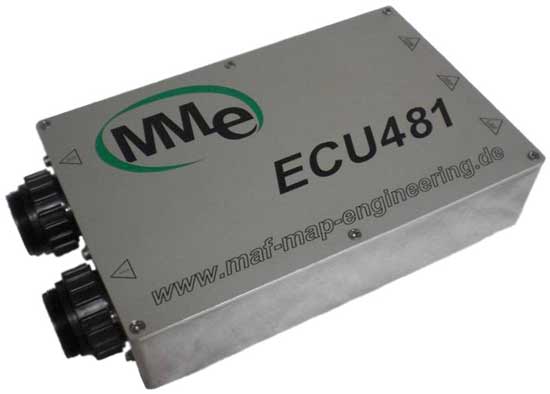

Maf-Map-Engineering ECU481

ECU Configuration

Needs to be set to AIM protocol
19200
8,N,1

ECU connection

ECU has standard female RS232 connector labelled COM. Plug the Race Technology ECU interface connector labelled ECU directly in to the ECU or using an extension cable

Channel naming

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
AIM_RPM	Engine RPM	RPM	VAR_0010	1 RPM
AIM_AIRCHARGETEMP	temperature 6	Inlet post intercooler 1	VAR_1005	0.1C
AIM_WATERTEMP	temperature 8	Water temp	VAR_1007	0.1C
AIM_OILTEMP	temperature 9	Oil temp	VAR_1008	0.1C
AIM_EXHTEMP	temperature 17	Exhaust 1 temp	VAR_1016	0.1C
AIM_WHEELSPEED	aux 26	Auxiliary 1	VAR_2025	1km/h
AIM_GEAR	aux 27	Auxiliary 2	VAR_2026	1
ECU481_CYLCHARGE	aux 28	Auxiliary 3	VAR_2027	0.05%
ECU481_KNOCKNOISE	aux 29	Auxiliary 4	VAR_2028	0.40%
ECU481_MAF1	aux 30	Fuel aux temp comp	VAR_2029	1 kg/h
ECU481_MAF2	aux 31	Fuel aux volt comp	VAR_2030	1 kg/h
AIM_THROTANG	angle 1	Throttle angle	VAR_3000	0.1 degrees
ECU481_IGNANGLE	angle 2	Ignition angle	VAR_3001	0.4 degrees
AIM_OILPRESS	pressure 2	Oil pressure	VAR_3501	1mb
AIM_FUELPRESS	pressure 3	Fuel pressure	VAR_3502	1mb
AIM_MANIFPRESS	pressure 5	Boost pressure	VAR_3504	1mb
AIM_LAMBDA	misc 1	Lambda 1	VAR_4000	0.001 lambda
AIM_BATT_VOLT	misc 3	Battery voltage	VAR_4002	1mV
