ECUType / LotusEliseExige

Lotus Elise and Exige

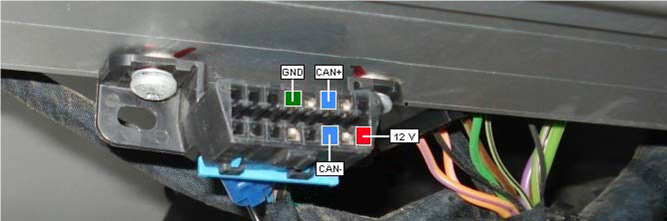

ECU connections:

120 ohm resistor required between CAN+ and CAN-

No ECU setup required.

Channel Listing:

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
RPM	Engine RPM	RPM	VAR_0010	1 RPM
Water temp	temperature 8	Water temp	VAR_1007	1^oC
vehicle speed	misc 4	Speed from the ECU	VAR_4003	0.6 MPH

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
