ECUType / GEMSEM36

GEMS EM36

ECU configuration

ECU configuration required
Connect to ECU

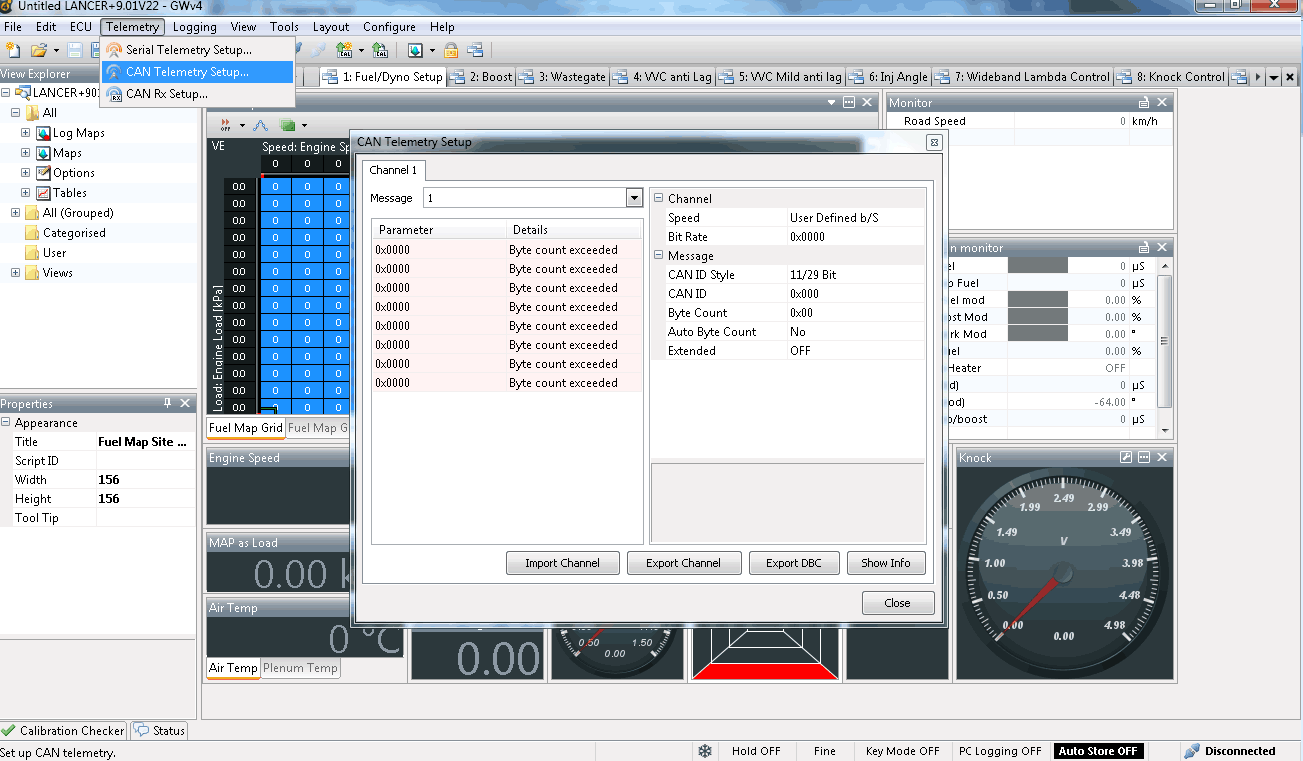

Click telemetry> CAN

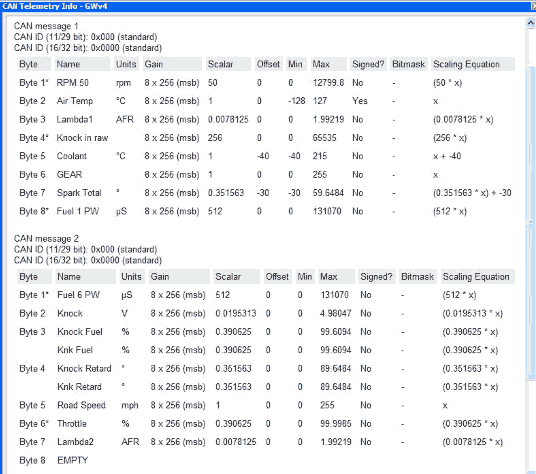

Select the channels in the correct order. Click on Show info and confirm it is the same as below.

Connection

Note: The EM36 is equipped with a female 9 way d-type connector but does not have the same pin assignment as our male 9 ways d-type connector.

Adaptor loom required to enable connection
Connect CAN high to CAN high
Connect CAN low to CAN low

ECU connections

Refer to Race Technology product info the CAN high and low assignment

Channel listings

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
RPM50	Engine RPM	RPM	VAR_0010	50 RPM
Air temp	temperature 1	temperature 1	VAR_1000	1c
Coolant	temperature 8	Water temp	VAR_1007	1c
Lambda 1	misc 1	Lambda 1	VAR_4000	0.008 Lambda
Gear	aux 26	Auxiliary 1	VAR_2025	1
Fuel 1 PW	aux 6	Fuel inj 1 PW	VAR_2005	1us
Fuel 6 PW	aux 11	Fuel inj 6 PW	VAR_2010	1us
Road speed	aux 27	Auxiliary 2	VAR_2026	1 MPH
Throttle	aux 1	Throttle position	VAR_2000	0.40%
Lambda 2	misc 2	Lambda 2	VAR_4001	0.008 Lambda
