ECUType / EMSIS80AHRS

EMSIS 80 AHRS

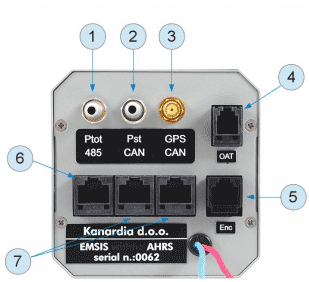

Connection

7 (both ports)

  • Pin 4 is CAN low
  • Pin 5 is CAN high
  • Connect the Race Technology CAN high connection to the Pin 5 EMSIS CAN high.
  • Connect the Race Technology CAN Low connection to the Pin 4 EMSIS CAN low.

Race Technology CAN connections

Configuration

  • No configuration needed


Channel Listings

Channel Name Race Technology message Race Technology Default name Race Technology VAR number Resolution
Longitudinal acceleration aux 1 Throttle position VAR_2000 0.01m/s*
Lateral acceleration aux 2 Lambda 1 short trim VAR_2001 0.01m/s*
Vertical acceleration aux 3 Lambda 2 short trim VAR_2002 0.01m/s*
Roll rate aux 4 Lambda 1 long trim VAR_2003 0.01 Rad/s*
Pitch rate aux 5 Lambda 2 long trim VAR_2004 0.01 Rad/s*
Yaw rate aux 6 Fuel inj 1 PW VAR_2005 0.01 Rad/s*
Pitch aux 7 Fuel inj 2 PW VAR_2006 0.01 Rad*
Roll aux 8 Fuel inj 3 PW VAR_2007 0.01 Rad*
Yaw aux 9 Fuel inj 4 PW VAR_2008 0.01 Rad*
* Divide by 10 in analysis to get correct scaling

Note - Not all channels listed in the table(s) above may be available from your ECU. This can be dependent on the vehicle model & year of manufacture.
