ECUType / ECUMASTEREMUV1-23

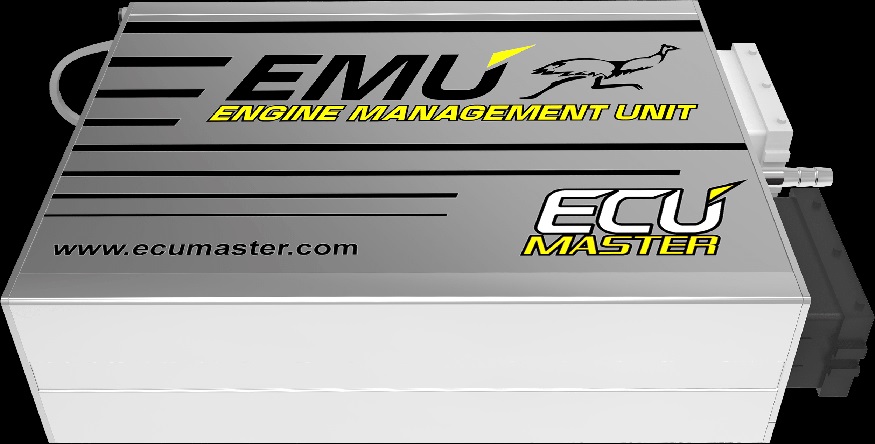

ECUMASTER EMU - Version 1.023

Supported Models

Version 1.023

Connection

Race Technology Dashboard should be connected to Ecumaster EMU extenstion port.

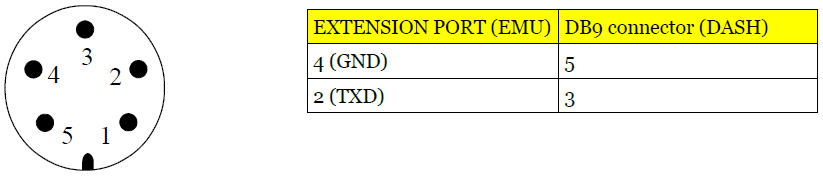

Front view of EMU extension port

ECU Configuration

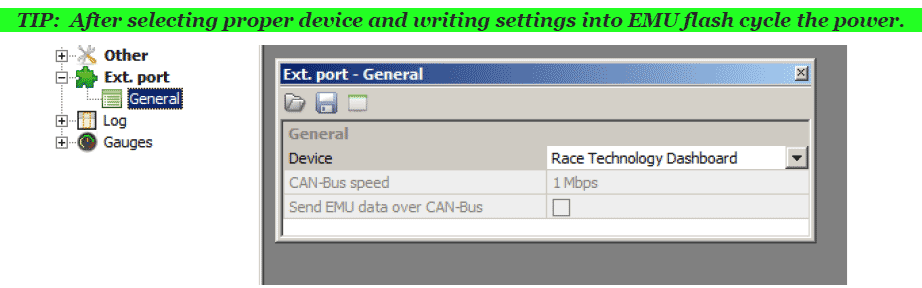

In Extension Port configuration there is an option Device. For Race Technology Dash, �Race Technology Dashboard� should be chosen.

Channel Listings

ECU Name	Race Technology message	Race Technology Default name	Race Technology VAR number	Resolution
RPM	frequency 1	Engine speed (ECU)	VAR_1500	1 RPM
Vehicle speed	SPEED	GPS vel RAW	VAR_0414	0.50%
Analog #1	analogue 1	analogue 1	VAR_0200	1 km/h
Analog #2	analogue 2	analogue 2	VAR_0201	0.0049v
Analog #3	analogue 3	analogue 3	VAR_0202	0.0049v
Analog #4	analogue 4	analogue 4	VAR_0203	0.0049v
Throttle opening percent	aux 1	Throttle position	VAR_2000	0.0049v
Lambda correction	aux 2	Lambda 1 short trim	VAR_2001	0.50%
Injector #1 PW	measured time 1	Fuel inj 1 PW on	VAR_2500	16us
Coil dwell time	measured time 9	Coil 1 PW	VAR_2508	50us
Ignition angle	angle 2	Ignition angle	VAR_3001	0.5 deg
Barometric pressure	pressure 1	Ambient air pressure	VAR_3500	1kPa
Oil pressure	pressure 2	Oil pressure	VAR_3501	0.0625 bar
Fuel pressure	pressure 3	Fuel pressure	VAR_3502	0.03125 bar
Boost pressure (MAP)	pressure 5	Boost pressure	VAR_3504	1kPa
Water temperature (CLT)	temperature 8	Water temp	VAR_1007	1C
Oil temperature	temperature 9	Oil temp	VAR_1008	1C
Inlet post intercooler temperature (IAT)	temperature 6	Inlet post intercooler 1	VAR_1005	1C
EGT #1	temperature 17	Exhaust 1 temp	VAR_1016	1C
EGT #2	temperature 18	Exhaust 2 temp	VAR_1017	1C
ECU temperature	temperature 16	ECU temp	VAR_1015	1C
Lambda	misc 1	Lambda 1	VAR_4000	0.0078125
Battery voltage	misc 3	Battery voltage	VAR_4002	0.027v
