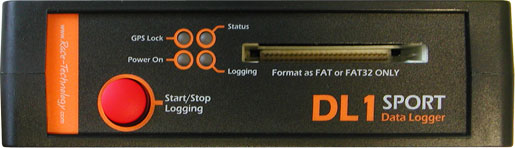

DL1 SPORT Connector details

Connections for DL1 SPORT


WARNING: To avoid any possible damage to the car paintwork, please take care when mounting magnetic GPS antennas. In particular make sure that there are no dust or grit under the antenna. In some cases it maybe required to add additional protection to the paintwork prior to mounting the antenna to avoid damage.

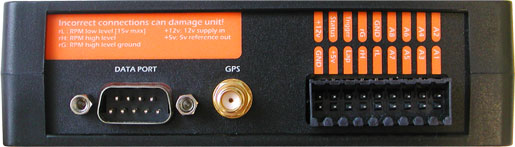

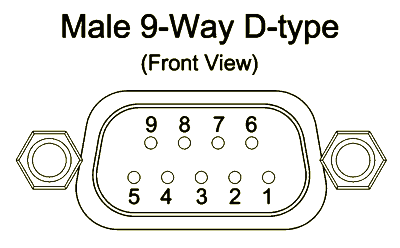

PIN DESCRIPTION
1 N/C
2 RX - Main Data In
3 TX - Main Data Out
4 N/C
5 GND
6 N/C
7 +12v Out ( 50 mA limit)
8 N/C
9 N/C
LABEL DESCRIPTION
A1 0-12v 16-Bit In
A2 0-12v 16-Bit In
A3 0-12v 16-Bit In
A4 0-12v 16-Bit In
A5 0-12v 16-Bit In
A6 0-12v 16-Bit In
A7 0-12v 16-Bit In
A8 0-12v 16-Bit In
rL - RPM Low Level 5-15v Trigger - ECU or Tacho Use.
GND
rH - RPM High Level 1KHz HT Input - See Connecting RPM
rG - RPM High Level Ground See Connecting RPM
Lap Lap marker input (active high) In
Trigger Active Low (Take to GND) - Toggles Logging ON/OFF In
+5v Ref Out 50mA Max Out
Stat 50mA Max, Active Low, indicates logging status or GoPro output.

See Connecting GoPro cable

Out
Gnd
+12vPower   In
GPS RF +3.3v GPS Antenna Connection (3.3v)
