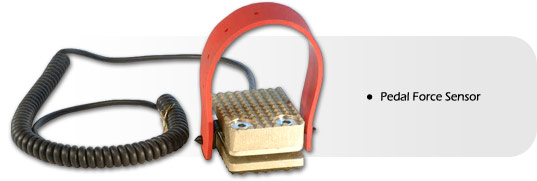

Pedal Force Sensor

Description

This pedal force sensor can be fitted to the vehicle's brake pedal to measure the force being applied to the pedal by the driver. The high accuracy sensor is low weight an easily attached.

Technical Data


Measuring range 0-100 dN + overload 50 dN (Kgp)
Linearity 0.7% 0-100 dN
Output signal 1mV/N
Temperature coefficient 0.2% per 10°C
Supply voltage 7-15V DC
Current consumption max. 25mA
Dimensions L:65 W:52 H:34
Adjustment Zero offset adjustment

Connections

Yellow wire Signal
Green Wire Signal Ground
Brown Wire 8-15VDC Supply
White Wire Supply Ground
